Single Sign On - Windows 2003 Setup

This section applies to the DCs, ad1 & ad2.


Prerequisite
Please make sure the following components are ready before continue:

• Healthy DCs
• Required host names and IP addresses are registered in DNS
• Reliable NTP



Hostname & IP Address

Hostname	IP Address	Comment
ad1	172.22.0.248	Windows 2003 R2 Server; DC
ad2	172.22.0.249	Windows 2003 R2 Server; DC
cstokunix01	172.22.0.62	Solaris 10; Unix client
cstokunix02	172.22.0.65	Red Hat Linux 9; Unix client
cstokunix03	172.22.0.66	RHEL5.2 Server; Unix client
cstokvmhost1	172.22.0.33	RHEL5.2 Server; NFS server

Install SSO Components
The following items are required:

• Identity Management for UNIX (Under Active Directory Services)
  • Administration Components
  • Server For NIS

• Microsoft Services for NFS (Under Other Network File and Print Services)
  • RPC External DataRepresentation
  • RPC Port Mapper

• Windows 2003 Server Support Tools

Open Ports
The following ports need to be opened in DCs if firewall is enabled:

Protocol	Port	Comment
UDP	53	DNS
UDP	88	Kerberos
UDP	464	Kpasswd
TCP	389	LDAP

NIS ypclear Utility

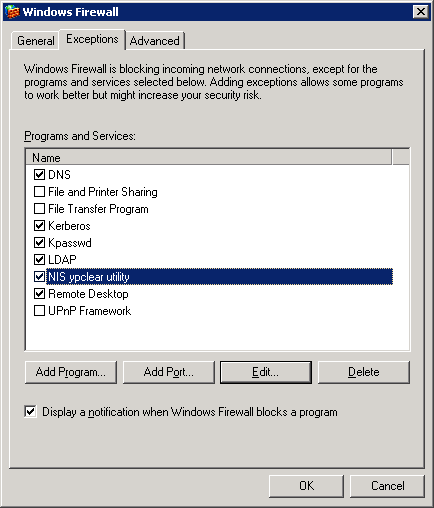

NIS ypclear utility should be included in the Windows Firewall Exceptions.

Disable Server for NIS service
Please disable the service Server for NIS, it is not required.


Indexing uid in AD Schema
From command prompt, run C:\>regsvr32 schmmgmt.dll

Open Active Directory Schema MMC and look for uid object in the Attributes container, then open its Properties windows. Enable the checkbox Index this attribute in the Active Directory.

Reference:
http://blog.scottlowe.org/2006/08/08/linux-active-directory-and-windows-server-2003-r2-revisited/
Using Kerberos to Authenticate a Solaris 10 OS LDAP Client With Microsoft Active Directory


Create OU

Two OUs are created in allure.local domain:

• Unix; stores all Unix related user, group, and OU objects

• Solaris; child of Unix OU, stores all Solaris server security principal names

Create user/group AD Object
Create a default Unix group:

• Location: Unix OU
• Group Name: arctic
• Group Scope: Global
• Group Type: Security
• NIS Domain: allure
• GID: 10000

Add a LDAP bind account:

• Location: Unix OU
• User Name: ice
• Member: Domain Guests
• Password: fireball!
• Option: Password never expires

Add an AD user account:

• Location: Unix OU
• User Name: penguin
• Member: Domain Users
• Password: tuxracer!
• NIS Domain: allure
• UID: 10001
• Login Shell: /bin/bash
• Home Directory: /nfshome/penguin
• Primary group name: arctic
